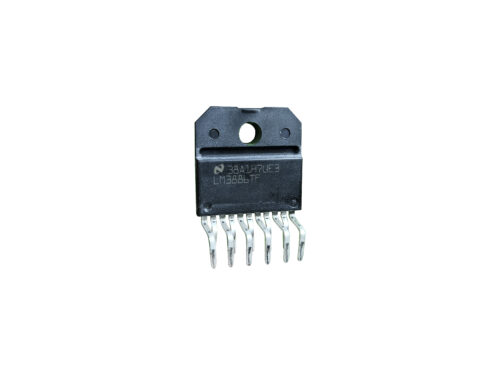

LM3886TF High-Performance Audio Amplifier IC – Perfect for High-Fidelity Audio Systems
Enhance your audio projects with the LM3886TF, a high-performance Class AB audio amplifier IC designed to deliver exceptional sound quality. Whether you’re building a home audio system, DIY amplifier, or professional-grade audio equipment, the LM3886TF offers outstanding efficiency, thermal stability, and distortion-free performance.
This chip is ideal for audiophiles and electronics enthusiasts who demand top-notch audio clarity and reliability.
Key Features of LM3886TF
- High Output Power: Delivers up to 68W RMS continuous power into a 4-ohm load at ±28V power supply.
- Low Distortion: Ensures minimal Total Harmonic Distortion (THD+N) of just 0.03% at 60W output.
- Wide Working Voltage Range: Operates within a voltage range of ±10V to ±42V, providing flexibility for different power supply configurations.
- Mute Function: Built-in mute control for easy and noise-free on/off operation.
- Advanced Protection Features: Includes thermal shutdown, current limiting, and protection against output short circuits.
- Isolated Package: TF variant comes with an insulated tab for easier mounting and enhanced thermal management.
Specifications at a Glance
- Output Power: 68W @ ±28V (4Ω load)
- Power Supply Range: ±10V to ±42V DC
- THD+N: 0.03% @ 60W, 1kHz
- Signal-to-Noise Ratio: 92dB (A-weighted)
- Mute Current: 0.5mA typical
- Package Type: TO-220-11 (Insulated Tab)
- Thermal Resistance (Junction to Case): 2°C/W
Applications
- Hi-Fi stereo audio systems
- Home theater amplifiers
- Active speakers and subwoofers
- Public address (PA) systems
- DIY audio amplifier projects
Why Choose LM3886TF?
The LM3886TF is a robust and highly reliable amplifier IC that offers studio-quality audio reproduction. Its advanced features like low distortion, wide dynamic range, and built-in protection systems make it a popular choice among audio engineers and enthusiasts worldwide.
Technical Resources
Access the official LM3886TF Datasheet with one click for complete technical details, application circuits, and design guidelines.
Download LM3886TF Datasheet
Order Now
Take your audio projects to the next level with the LM3886TF High-Performance Audio Amplifier IC. Order today and experience unparalleled sound quality in your custom audio setups!
