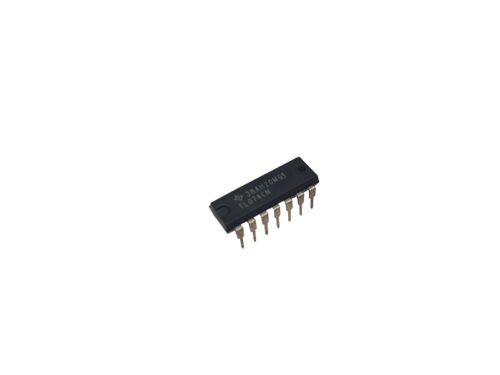

TL074 Low Noise JFET Quad Operation Amplifier Texas Instruments 1 PC

Description

The main distinguishing feature of the TL074 Op-Amp is that they incorporate high-voltage JFET and bipolar transistors which helps the transistor to have very high input impedance and low bias current. Also this Op-Amp has low noise and harmonic distortion making it an ideal choice for audio pre-amplifiers. So if you are looking for an Op-Amp IC with Quad package and JFET driven then this IC might be the right choice for you

• JFET Input Op-Amp Quad Package
• Typical Operating Voltage: +15V to -15V
• Maximum operating Voltage: 36V
• Input Bias Current: 65pA
• Common mode Rejection Ratio CMRR: 100dB
• Low Level Input Voltage: 0.8V (max)
• Propagation Delay (Pd) / Transition time: 29 ns (max)
• Low Input Bias and Offset Current
• Output Short circuit protection
• Available in 14-pin PDIP, SO-14, TSSOP packages with variations like TL74A, TL74AB, TL74AC, and TL74L.

Note: For More Details, Please Refer Datasheet from Texas Instruments
