Description

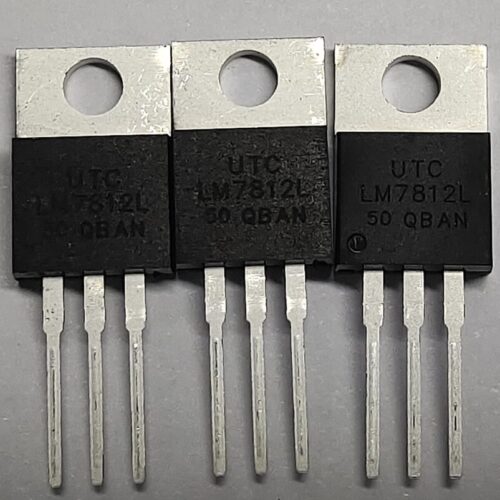

The UTC LM7812 is a linear voltage regulator integrated circuit (IC) with the following features:
- Output voltage: 12V
- Output current: 1.5A
- Polarity: Positive
- Output type: Fixed
- Input voltage max: 35V
- Input voltage min: 14V
- Minimum operating temperature: 0°C
- Maximum operating temperature: + 125°C
- Load regulation: 240mV
- Line regulation: 240mV
- Packaging: Tube
- Height: 9.15mm
- Length: 10.4mm
- Mounting style: Through hole
- Package/case: TO-220
Bidhan Naiya (verified owner) –
Very good quality. Original product from utc
